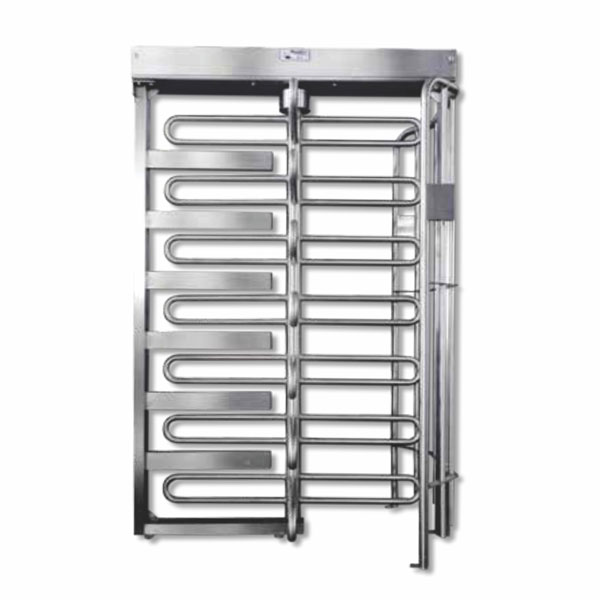

TORNADO TURNSTILE
The Tornado Turnstile is used to control high volumes at high risk areas. It is suitable for both exterior and interior use, with virtually no maintenance.
FEATURES
• 3-arm (120°), 4-arm (90°), 5-arm (75°)
• Single or Double
• Mild powder coated
• Mild steel galvanised SABS Standards
• Stainless steel 304 or 316
• Can be fully disassembled to fit through a standard door
INCLUSIONS / ADDITIONAL OPTIONS:
• 7 year mechanical warranty
• Supplied complete with control panel
• 12V output for LED indicators
• Battery back up comes standard.
• The turnstile can be fitted with red/green walking man to indicate go or stop.
• The turnstile comes standard with card reader brackets.
• Bigger reader boxes, rain covers, push buttons, random search selectors.
| SPECIFICATIONS | |
|---|---|
Power | 220V AC ± 5% |
Frequency | 50Hz |
Power Consumption | 50W for single turnstile and 100W for double turnstile |
Voltage | 24V DC, 12V on request |
Dimensions | Single: 1405 x 2135 mm (WxH), Double: 2155 x 2135 mm (WxH) |
Rotor Turning Radius | R = 590mm |
Weight | Single full height turnstile 4-arm = 180kg, Double full height turnstile 4-arm = 275kg |
