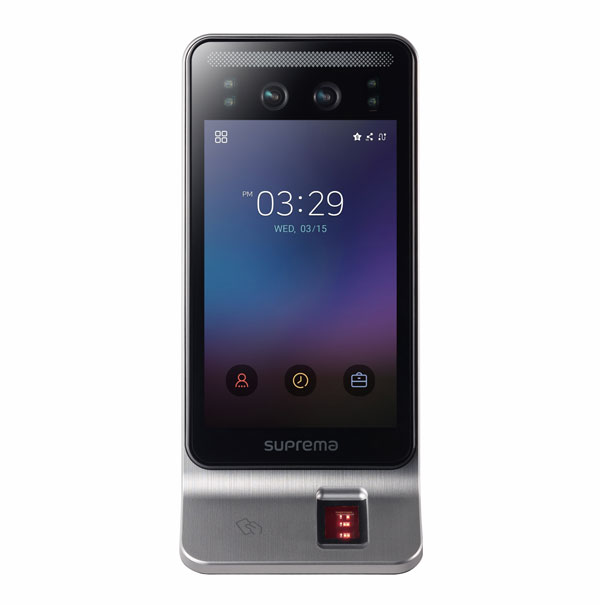

EBSFF850
TIME & ATTENDANCE AND ACCESS CONTROL
FOR INTERNAL USE
The EBSFF850 boasts exceptional authentication accuracy achieved by the fusion matching of visual and infrared(IR) face recognition.
• Anti-spoofing via IR-Based Live Face Detection
• Encrypts all biometric credentials and personal information
| SPECIFICATIONS | |
|---|---|
RF Options | 125kHz EM & 13.56MHz MIFARE,
MIFARE Plus, DESFire EV1/EV2/EV3(1), FeliCa |
CPU | 1.8 GHz Dual Core + 1.4 GHz Quad Core |
Memory | 16GB Flash + 2GB RAM |
Crypto Chip | Supported |
LCD | 7” IPS color LCD, 800 x 1280 pixels |
Sound | 16 bit |
Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
Operating Humidity | 0% ~ 80%, non-condensing |
Dimensions | 119.8 x 268.3 x 49.6 |
Weight | 670g |
Ingress Protection | IP65 |
Certificates | CE, FCC, KC, RoHS, REACH, WEEE |
Capacity | Face: 50,000
l Fingerprint: 100,000 l Max. Text Log 5,000,000
l Max. Image Log 50,000 |
Ethernet | 10/100 Mbps, auto MDI/MDI-X |
RS485 | 1ch Host or Slave (Selectable |
Wiegand | 1ch Input or Output (Selectable) |
TTL Input | 2ch Inputs |
Relay | 1 Relay |
Power | DC 12V 1.9A, DC 24V 1A |
