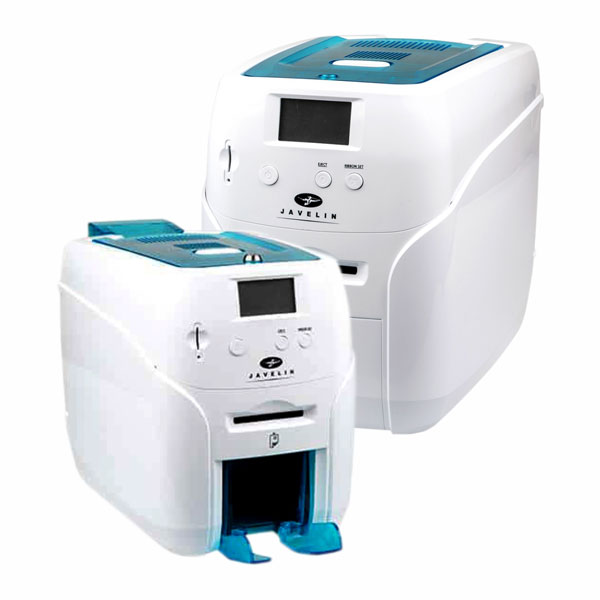

DESKTOP ID CARD PRINTERS
These compact and powerful models are user-friendly and deliver outstanding performance. The Javelin® DNA series offers an all in one solution with high quality colour or monochrome printing.
• LCD displays for ease of use
• Security lock options
• 16.7 Million colour options
• Internal USB hub to connect camera, memory stick and other peripheral devices
• 3-track magnetic stripe encoding (HiCo-LoCo)
| SPECIFICATIONS | |
|---|---|
Print Mode | Single or dual sided printing |
Card Feed | Javelin DNA: Manual feed / Javelin DNA Pro: Auto feed |
Ribbons | KrO (500 prints/roll) / YMCKO (200 prints/roll) / YMCKOK (170 prints/roll) /
Half-panel YMC plus full KO (400prints/roll) / Monochrome (1000 print/roll) |
Print Method | Mono: Thermal transfer / Colour: Dye-sublimation |
Printer Interfaces | USB 2.0 internal USB hub |
Software Drivers | Windows XP, Server 2003/2008, Vista, Windows7, 8 & 10 |
Fonts/Images | 300 dpi resolution, 16.7 million colours, True Type fonts via Windows drivers |
Barcodes | Code 39, Code 128 B&C with/without check digit, 2 of 5 interleaved, UPC-A,
EAN 8 & 13 PDF-417 2D barcode and other symbols can be printed |
Power Source | Input: 100 – 240 V, 50 – 60 Hz / Output: DC 24 V, 2.5 A |
Dimensions | Javelin DNA: 305.6mm x 184mm x 228mm (LxWxH) /
Javelin DNA Pro: 366mm x 184mm x 228mm (LxWxH) |
Weight | Javelin DNA: 3.7 kg / Javelin DNA Pro: 4.5 kg |
CPU & RAM | CPU: 32 bit processor / RAM: 128 Mb |
Operating Temperature | 5 ~ 40°C / 20 ~ 65% RH (non-condensing) |
Storage Temperature | -10 ~ 60°C |
Card Types | PVC & composite PVC |
Card Dimensions | ISO CR-80-ISO 7810 – 53.98 x 85.60mm (WxL) |
Card Thickness | 0.4 – 1.2mm |
